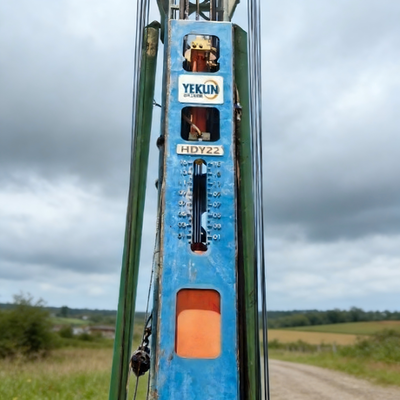

HDY22 Hydraulic Impact Hammer – Custom Exporters Low Maintenance Cost Design with High Quality Adjustable Impact Frequency Control

The HDY22 Hydraulic Impact Hammer represents the latest generation of energy-saving and environmentally friendly foundation construction equipment, engineered specifically to meet the rigorous demands of infrastructure projects across Southeast Asia, India, and Russia. As a premium offering from custom exporters in China, the HDY22 combines advanced hydraulic and electrical control technologies to deliver outstanding performance in diverse geological conditions. Whether driving precast concrete piles or steel pipe piles, this hammer provides the perfect balance of power, precision, and sustainability.

The HDY22 features a modular design comprising three integrated systems: the mechanical hammer assembly (the main body that performs external work), the hydraulic system (the power source), and the electrical system (the energy input and control center). This modular architecture not only simplifies maintenance but also enables flexible configuration for different project requirements.

With a maximum strike energy of 330 kN·m and a hammer core stroke of 1,500 mm, the HDY22 delivers exceptional impact force. The 22,000 kg striking body mass generates a powerful impulse that easily penetrates dense soils, stiff clay, and even soft rock layers commonly found in Russian and Indian terrains. This high quality engineering ensures that each strike drives the pile deeper, reducing the total number of blows required and significantly accelerating project completion. Contractors working on large-scale infrastructure, port construction, and high-rise building foundations will appreciate the efficiency gained from this high-energy design.

Different soil layers and pile types require different impact strategies. The HDY22 offers high quality adjustable impact frequency control ranging from 20 to 70 blows per minute. Operators can easily dial in the optimal frequency via the electronic control panel, matching the hammer's output to ground resistance. For soft soils, a lower frequency prevents pile damage; for hard layers, a higher frequency delivers rapid penetration. This flexibility is especially valuable in India and Russia, where site conditions can vary dramatically within a single project. The adjustable impact frequency control also helps avoid resonance with surrounding structures, enhancing both safety and precision.

The HDY22 incorporates a low maintenance cost design that minimizes downtime and maximizes return on investment. At the heart of this design are international-grade components that ensure long-term reliability:

• Trelleborg Seals: The hydraulic cylinder utilizes world-class Trelleborg seals, ensuring minimal leakage and high durability under harsh working conditions. These premium seals significantly reduce cylinder failure rates, extending service life and lowering maintenance costs.

• Rexroth Main Pumps and Valves: The hydraulic system features internationally renowned Rexroth main oil pumps and valves, delivering exceptional stability, high efficiency, and reliable performance.

• Hedeke Oil Return Filters: High-flow, high-precision Hedeke return filters improve hydraulic oil cleanliness, reducing equipment failure rates and extending overall service life.

• High-Power Triple Oil Cooler: A three-in-one oil cooler with precision temperature control彻底 eliminates hydraulic oil overheating—a common headache point in piling operations. This effective thermal management is critical for continuous operation in hot climates like Southeast Asia and India, significantly enhancing efficiency and extending component life.

The low maintenance cost design also extends to the power station, which features a high-level fuel tank and internal forced ventilation design that improves oil pump suction and heat dissipation for motors, electrical cabinets, and engines.

Urban expansion and environmental regulations are increasingly strict across Southeast Asia and India. The HDY22 incorporates advanced hydraulic cushioning and a dampened hammer box design that achieves static crushing low vibration noise operation. Impact energy is transferred efficiently into the pile head without radiating excessive vibration to surrounding soil or structures. Key environmental benefits include:

• Low Noise Operation: The fully enclosed hammer structure and advanced vibration damping system significantly reduce noise levels compared to traditional diesel hammers, allowing daytime and even nighttime work near residential areas without complaints or penalties.

• Zero On-Site Emissions: When paired with an electric power station option, the hydraulic system eliminates exhaust emissions at the point of use, making it a green choice for sensitive environments such as city centers, near schools, hospitals, and ecological zones.

• Vibration Reduction: The static crushing low vibration noise technology minimizes ground-borne vibration, protecting adjacent structures and reducing the risk of settlement in urban environments.

As a product of leading custom exporters in China, the HDY22 is designed with the flexibility to meet diverse project requirements worldwide. The D550 power station can be paired with both impact hammers and vibratory hammers, offering versatile configurations for different construction needs. Custom exporters provide:

• Flexible configuration options to match specific project requirements

• Comprehensive after-sales support and spare parts availability

• Customized solutions for offshore and marine piling with appropriate anti-corrosion treatment

Southeast Asia: The HDY22's robust cooling system ensures reliable performance in hot, humid tropical climates. Its low noise eco friendly operation and static crushing low vibration noise technology make it ideal for urban infrastructure projects in densely populated areas.

India: With India's intensive infrastructure development spanning highways, bridges, ports, and high-rise buildings, the HDY22 delivers the power and reliability needed for demanding projects. The adjustable impact frequency control allows operators to adapt to India's varied soil conditions from soft alluvial soils to hard bedrock.

Russia: Built with premium components and a robust design, the HDY22 withstands Russia's variable climates—from extreme cold to summer heat. The durable construction and low maintenance cost design ensure minimal downtime even in the most challenging conditions.

1. Q1: What makes the HDY22's low maintenance cost design different from other hydraulic hammers?

   A: The low maintenance cost design integrates premium components including Trelleborg seals in the hydraulic cylinder, Rexroth pumps and valves, and high-precision Hedeke filters. The high-power triple oil cooler with precision temperature control prevents overheating, extending seal and hydraulic oil life. These features significantly reduce failure rates and extend service intervals, lowering total cost of ownership.

2. Q2: How does the adjustable impact frequency control benefit different soil conditions?

   A: The high quality adjustable impact frequency control (20–70 bpm) allows operators to match the hammer's output to specific ground resistance. Lower frequencies prevent pile damage in soft soils, while higher frequencies deliver rapid penetration in hard layers. This flexibility is especially valuable in markets like India and Russia where site conditions can vary dramatically.

3. Q3: Is the HDY22 suitable for urban construction projects with strict noise regulations?

   A: Yes. The HDY22 features static crushing low vibration noise operation with advanced hydraulic cushioning and a dampened hammer box design. Noise levels are significantly reduced compared to traditional diesel hammers, allowing work near residential areas. When paired with an electric power station, the system produces zero on-site emissions.

4. Q4: Can the HDY22 handle offshore or marine piling applications?

   A: Yes, with appropriate anti-corrosion treatment. Custom exporters can provide tailored solutions for marine environments, ensuring the equipment withstands saltwater exposure and harsh offshore conditions.

5. Q5: What power station options are available for the HDY22?

   A: The HDY22 is compatible with the D550 power station, which features two Rexroth A11VLO series axial piston pumps (one A11VLO260 and one A11VLO190) operating in parallel. The D550 power station delivers a main oil circuit maximum flow rate of 900 L/min and can also be paired with vibratory hammers for versatile construction applications.

6. Q6: How does the HDY22 perform in extreme weather conditions?

   A: The robust cooling system and premium sealing ensure reliable performance in extreme temperatures—from tropical heat in Southeast Asia to cold Russian winters. The high-power oil cooler prevents overheating in hot climates, while the durable construction and premium seals maintain performance in freezing conditions.
