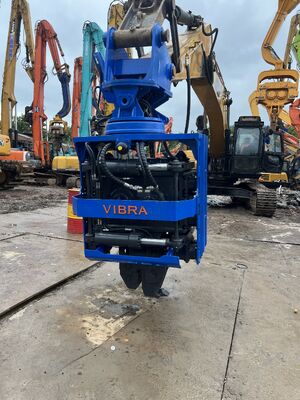

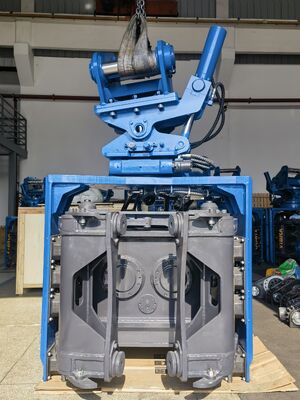

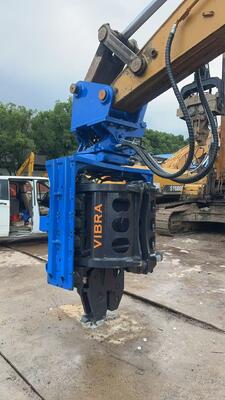

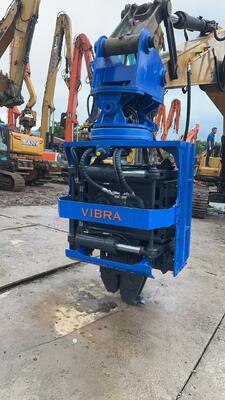

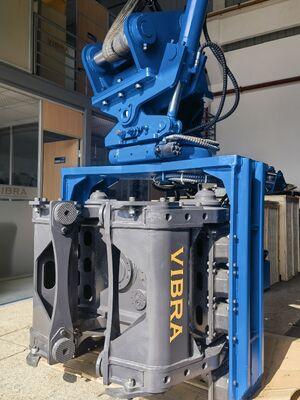

SV-400 Side Grip Pile Driver: The Ultimate Solution for Confined Space Piling Operations

As a trusted name among Exporters Side grip pile driver, Shanghai Yekun Construction Machinery Co., Ltd. presents the SV-400—a high-performance hydraulic vibratory hammer specifically engineered for challenging low clearance and narrow space environments. Whether you are working inside factory buildings, under bridges, or in urban construction sites with height restrictions, the SV-400 delivers unmatched versatility and power.

The SV-400 is designed to overcome the spatial limitations that plague traditional piling equipment. Its unique configuration allows standard 32-40 ton excavators to be transformed into highly capable piling machines with minimal modification.

• Full 360 Degree Continuous Rotation: The SV-400 features a full 360 degree continuous rotation China construction professionals rely on for precise pile positioning. This capability allows the operator to rotate the pile driver to any angle without restriction, eliminating the need to reposition the excavator repeatedly. Whether working in tight corners or aligning piles with complex foundation designs, this full rotation ensures optimal productivity and accuracy on every job.

• Bidirectional Tilt Driving Head: Equipped with a bidirectional tilt driving head Manufacturers China have perfected, the SV-400 offers ±30 degrees of tilt in both directions. This feature is invaluable when driving piles at angles or working on uneven terrain. The tilt function, combined with full rotation, provides complete flexibility to handle any piling angle required by modern foundation engineering, including inclined piles for bridge abutments and retaining walls.

The SV-400 is purpose-built for environments where height and space are at a premium. Its compact design and dual clamping system make it the ideal choice for indoor and restricted-area projects.

• Low Headroom Operation Capability: As a low headroom operation capability Suppliers China recommend, the SV-400 utilizes a unique side grip and bottom grip clamping system that eliminates the need for tall vertical masts. This design allows the machine to operate effectively in spaces with extremely limited vertical clearance, such as inside existing buildings, under bridge decks, and within tunnels. Contractors can now complete piling work in locations that were previously inaccessible to conventional pile drivers.

• Compact Structure for Confined Spaces: The SV-400 embodies the compact structure confined spaces Made In China engineering philosophy. With dimensions of just 1400mm x 1315mm x 3056mm and a total weight of 3870 kg, this machine offers exceptional power density. Its compact footprint allows it to maneuver in narrow corridors and congested job sites where larger equipment simply cannot fit. The low-profile design ensures safe and efficient operation in confined urban environments.

The SV-400 features a multifunctional fixture system with replaceable standard clamp seat interfaces. This design enables quick changeover between different pile types, including steel sheet piles, H-beams, and circular pipe piles. The side clamp delivers 465 kN of clamping force, while the bottom clamp provides 520 kN, ensuring secure gripping under all operating conditions. One machine can complete the entire process of clamping, positioning, driving, and extraction without auxiliary equipment.

The SV-400 delivers a centrifugal force of 656 kN with an operating frequency range of 2300-3100 rpm. This high-frequency vibration rapidly liquefies surrounding soil, reducing friction and enabling fast penetration and extraction. The system operates at 32 Mpa with a flow requirement of 280-360 L/min, making it compatible with a wide range of 32-40 ton excavators.

Q1: What makes the SV-400 different from standard pile drivers?

A: Unlike conventional vertical pile drivers, the SV-400 is a side grip pile driver that utilizes both side and bottom clamps. This unique design, combined with full 360 degree continuous rotation China engineering provides, allows operation in low headroom environments—typically under 4 meters. Standard pile drivers require tall masts and cannot function indoors or under bridges. The SV-400 eliminates this limitation.

Q2: How does the bidirectional tilt function benefit my projects?

A: The bidirectional tilt driving head Manufacturers China have developed provides ±30-degree tilt capability. This is essential for projects requiring inclined piles, such as bridge abutments, retaining walls, and slope stabilization. The tilt function also helps compensate for uneven ground conditions, ensuring that each pile is driven at the exact angle specified in the engineering design.

Q3: Can the SV-400 work in extremely tight spaces?

A: Absolutely. With its compact structure confined spaces Made In China design philosophy, the SV-400 is specifically engineered for confined areas. Its total weight of 3870 kg and compact dimensions allow it to operate in narrow corridors, inside factory buildings, and in dense urban construction sites. The side grip configuration eliminates the need for vertical clearance, making it the preferred choice for renovation and expansion projects.

Q4: What types of piles can the SV-400 handle?

A: The SV-400 features a multifunctional clamping system with replaceable standard interfaces. It can handle steel sheet piles, H-shaped steel beams, circular pipe piles, and other common pile types. The quick tool change system allows operators to switch between pile types rapidly without specialized tools, minimizing downtime.

Q5: Is the SV-400 easy to install on existing excavators?

A: Yes. The SV-400 is designed for quick installation on standard 32-40 ton excavators with minimal modification. The excavator's existing hydraulic system powers the pile driver directly, eliminating the need for external power units. Operators with basic excavator experience can quickly learn to operate the machine.
